Your home router’s factory firmware limits your network’s potential. Custom firmware unlocks advanced features like bandwidth monitoring, VPN servers, mesh networking, and granular security controls that manufacturers deliberately restrict.
What You Need to Know
Custom router firmware transforms basic consumer routers into enterprise-grade networking equipment. Popular options like OpenWrt, DD-WRT, and AsusWRT-Merlin replace manufacturer limitations with open-source flexibility. You gain access to professional networking features, enhanced security protocols, and detailed network analytics typically reserved for business-class hardware.
Before starting, understand the risks. Flashing firmware voids warranties and can permanently damage your router if done incorrectly – a condition called “bricking.” Always verify firmware compatibility with your exact router model and hardware revision. Different revisions of the same model may require different firmware files.
Router manufacturers use proprietary bootloaders and security measures that make firmware installation challenging. Some models require specific preparation steps, while others need temporary downgrades to older firmware versions before accepting custom installations.
Step 1: Choose Compatible Hardware and Firmware
Research your router’s compatibility thoroughly. Visit OpenWrt.org’s Table of Hardware to check if your specific model and hardware revision supports custom firmware. Look for your router’s exact model number and version – usually found on a label underneath the device.
Popular firmware options serve different needs:
OpenWrt offers maximum flexibility with package management systems and extensive customization options. It supports the widest range of hardware but requires more technical knowledge.
DD-WRT provides user-friendly interfaces with enterprise features like hotspot management, bandwidth monitoring, and VPN services built-in.
AsusWRT-Merlin enhances stock Asus firmware while maintaining stability and official app compatibility. It adds advanced features without completely replacing the original interface.
Download firmware files only from official sources. Third-party mirrors may contain modified versions with security vulnerabilities or malware.
Step 2: Prepare Your Router and Network

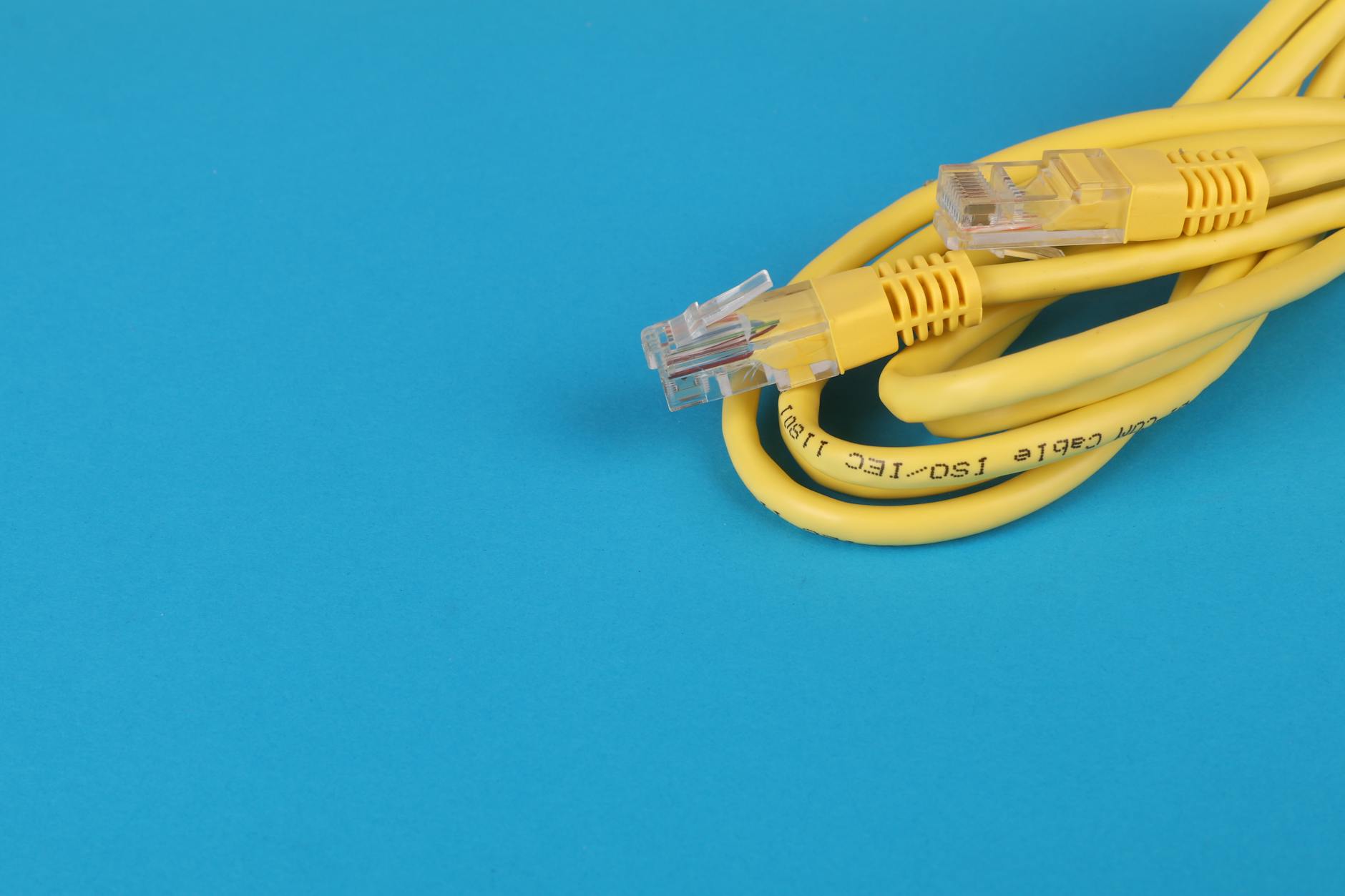

Create a stable environment for firmware installation. Connect your computer directly to the router via Ethernet cable – never attempt firmware flashing over WiFi connections that could drop during the process.
Power your router through an uninterruptible power supply (UPS) if available. Power failures during firmware installation will brick most routers permanently.
Access your router’s current administrative interface through a web browser. Navigate to the default gateway address, typically 192.168.1.1 or 192.168.0.1. Document current settings including WiFi passwords, port forwarding rules, and network configurations for later restoration.
Update your router to the latest official firmware first. Some custom firmware installations require specific stock firmware versions as starting points. This step also ensures your router’s flash memory operates correctly before attempting modifications.
Create a recovery plan. Research your router’s recovery mode procedures, which vary by manufacturer. Some routers support TFTP recovery, while others require hardware button combinations during power-up sequences.
Step 3: Install Custom Firmware
Disable all security software temporarily, including Windows Defender, antivirus programs, and firewalls. These applications often interfere with firmware upload processes by blocking network communications or file transfers.
Navigate to your router’s firmware upgrade section in the administrative interface. This location varies by manufacturer – look for “Administration,” “System Tools,” or “Advanced Settings” menus.
Upload the custom firmware file through the web interface. The installation process typically takes 2-5 minutes. Never interrupt the process or power cycle the router during installation. Most routers display progress indicators or LED sequences during flashing.
Some routers require specific installation procedures:
ASUS routers often need the “Reset to Factory Default” option selected during custom firmware installation to clear proprietary settings.
Netgear models may require TFTP installation methods rather than web interface uploads, especially for initial custom firmware installation.
Linksys WRT series routers sometimes need dual-firmware installations, flashing the same firmware file twice in sequence.
Step 4: Configure Advanced Network Features
Access your newly installed custom firmware interface. Most installations default to 192.168.1.1 with username “root” and blank passwords. Change default credentials immediately for security.
Configure basic connectivity first. Set your internet connection type (DHCP, PPPoE, or Static IP) matching your ISP requirements. Restore WiFi network names and passwords from your documentation.
Enable advanced features gradually:
Quality of Service (QoS) prioritizes network traffic by device, application, or protocol. Configure bandwidth limits for streaming services while prioritizing gaming or video conferencing traffic.
VPN Server functionality lets you securely access your home network remotely. OpenWrt supports OpenVPN and WireGuard protocols with detailed configuration options.
Guest Networks with bandwidth restrictions and internet-only access protect your main network from visitor devices.
Network monitoring tools track bandwidth usage by device, helping identify network bottlenecks or unauthorized access.
For advanced users building comprehensive home networks, consider integrating custom router firmware with dedicated network storage solutions. Building a custom NAS server with TrueNAS complements advanced router configurations by providing centralized media streaming and file storage with enterprise-grade reliability.
Step 5: Optimize Performance and Security
Fine-tune wireless settings for optimal performance. Custom firmware exposes advanced WiFi parameters including transmit power levels, channel bonding options, and antenna configurations hidden in stock firmware.
Configure security features beyond basic WPA3 encryption:
Access Control Lists restrict internet access by time schedules, website categories, or specific URLs for individual devices.
Intrusion Detection Systems monitor network traffic for suspicious patterns and automatically block potential threats.
DNS filtering blocks malicious domains, advertising networks, and tracking services at the network level, protecting all connected devices simultaneously.
Enable automatic security updates if supported by your chosen firmware. OpenWrt and DD-WRT provide package management systems for installing security patches and feature updates without complete firmware reflashing.
Document your configuration settings. Custom firmware configurations can become complex, making restoration difficult after hardware failures or accidental resets.
Troubleshooting Common Issues
Address connectivity problems systematically. If internet access fails after installation, verify your ISP connection settings match the original configuration. Some ISPs require specific VLAN tags or authentication methods that may need manual configuration in custom firmware.
WiFi performance issues often stem from incorrect channel selection or transmit power settings. Use WiFi analyzer applications to identify optimal channels with minimal interference from neighboring networks.
Recovery from installation failures depends on your router model. Most support 30-30-30 reset procedures: hold the reset button for 30 seconds while powered, maintain pressure for 30 seconds while unplugging power, then continue for 30 seconds after reconnecting power.
For routers supporting TFTP recovery, prepare recovery firmware files in advance. These specialized files restore basic functionality for subsequent repair attempts.
Key Takeaways
Custom router firmware transforms consumer networking equipment into professional-grade infrastructure with enterprise features and security controls. Success requires careful hardware compatibility research, stable installation environments, and systematic configuration approaches.
The investment in time and potential hardware risk pays dividends through enhanced network control, security improvements, and feature flexibility impossible with stock firmware. Advanced users gain access to VPN servers, detailed traffic analysis, and network optimization tools typically costing thousands in commercial equipment.
Start with well-supported router models from established manufacturers like ASUS, Netgear, or Linksys. These platforms offer extensive community support, detailed documentation, and recovery options for troubleshooting installation issues.
Custom firmware installation represents a gateway to advanced networking concepts and home laboratory experimentation. The skills developed through router customization apply directly to enterprise networking, network security, and system administration career paths.
Frequently Asked Questions
Will custom firmware void my router warranty?
Yes, installing custom firmware immediately voids manufacturer warranties and carries risk of permanent device damage.
Can I return to stock firmware after installing custom firmware?
Usually yes, but the process varies by router model and may require specific recovery procedures or hardware tools.
